GANGLION CELL COMPLEX ANALYSIS
Retinal
ganglion cells (RGCs) are large, complex cells. The RGCs begin in the inner
plexiform layer (IPL), the layer formed by the dendrites of the RGCs. Here they synapse with the bipolar and amacrine cells of
the middle retina. Subsequently, they extend from the inner retina and travel all the way to
the lateral geniculate nucleus (LGN) in the midbrain.
Their
cell bodies (soma) make up the ganglion cell layer (GCL), while the axons
emerging from the RGCs form the retinal nerve fiber layer (RNFL). The axons
traverse the retina; converge at the scleral foramen forming the neuro-retinal
rim (NRR) of the optic nerve head (ONH). Subsequently, they continue onto the
optic chiasm and LGN.
Glaucoma
evaluation by macular imaging was first suggested by Zeimer. Since the
RNFL is only composed of axons, assessing the RGC itself might be a more direct
way to measure ocular damage due to glaucoma rather than measurement of the
circumpapillary RNFL (cpRNFL).
On
a cross-sectional OCT image, all the 3 segments of the ganglion cells (IPL, GCL
& RNFL) are known as ganglion cell complex (GCC).
Ganglion Cell Complex |
Approximately
50% of the total RGCs in the retina synapse in the central 5 mm of the macula.
Thus, all OCT machines perform GCC scans that are centered on the fovea to a
diameter of between 6-9 mm. Depending on
the machine, the average GCC thickness is approximately 95-100 microns.
Studies have shown that the receiver
area under the curve (AUC) for GCC scans is about 0.92. This is better than the
AUC for RNFL which is around 0.91. It is assumed that this is because in
glaucoma the inner retinal layers are affected more compared to the outer
retinal layers.
https://tvst.arvojournals.org/article.aspx?articleid=2677986
https://tvst.arvojournals.org/article.aspx?articleid=2677986

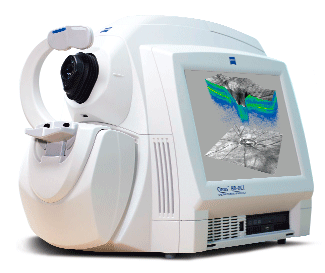

The Cirrus OCT (Zeiss) uses a "macular cube (512x128) acquisition protocol” which generates a cube
through a 6 mm square grid of 128 B-scans, each consisting of 512 A-scans. Another
200x200 protocol acquires 200 A and B scans each. A built-in GCC analysis
algorithm software detects and measures the thickness of macular GCC in a 6x6x2
mm elliptical annulus centered on the fovea. The annulus consists of an inner
vertical diameter of 1 mm chosen to exclude parts of the fovea where the layers
are very thin and difficult to detect accurately and an outer vertical diameter
of 4 mm, chosen to coincide with the area at which the GCC again becomes thin
and difficult to detect.
The
thickness values recorded are mean thickness, mean minimum thickness (thickness
of the thinnest sector) and the topography of the macular region divided into 6
sectors, expressed in micrometers: superior, inferior, superior & inferior
temporal and superior & inferior nasal. Each spoke represents the average
number of pixels along that spoke. The data is compared with a normative
database in the form of maps, graphs and tables in which the colors are the
same as in the ONH protocol. GCC thickness in the normal range is represented
by green backgrounds. The thinnest 5- and 1% of measurements are represented by
yellow and red backgrounds respectively. The hypernormal (95th-100th
percentiles) thicknesses are presented in white color. The thickness acquisition leads to development of "Thickness Maps". The results are then compared with normative data to form the "Deviation Maps". It is found that early glaucoma manifests changes in the mean minimum thickness in the inferior temporal sector.
Thickness acquisition map: It shows the thickness of the GCL+IPL in the 6mm x 6mm cube, represented as an elliptical annulus centered about the fovea.
Deviation map: This shows a comparison of the results compared to a normative database. GCC thickness in the normal range is represented by green backgrounds. The thinnest 5- and 1% of measurements are represented by yellow and red superpixels on the gray scale photograph respectively. The hypernormal (95th-100th percentiles) thicknesses are presented in white color.
Thickness table: It shows average and minimum thicknesses within the elliptical annulus.
Sectoral thickness map: It is displayed in an elliptical manner divided into 6 sectors- 3 superior and 3 inferior. They are color coded similar to the RNFL thickness maps.
Horizontal and vertical B-scans: These are extracted from the macular cube; with the locales marked on the macular map.
Thickness acquisition map: It shows the thickness of the GCL+IPL in the 6mm x 6mm cube, represented as an elliptical annulus centered about the fovea.
Deviation map: This shows a comparison of the results compared to a normative database. GCC thickness in the normal range is represented by green backgrounds. The thinnest 5- and 1% of measurements are represented by yellow and red superpixels on the gray scale photograph respectively. The hypernormal (95th-100th percentiles) thicknesses are presented in white color.
Thickness table: It shows average and minimum thicknesses within the elliptical annulus.
Sectoral thickness map: It is displayed in an elliptical manner divided into 6 sectors- 3 superior and 3 inferior. They are color coded similar to the RNFL thickness maps.
Horizontal and vertical B-scans: These are extracted from the macular cube; with the locales marked on the macular map.
The RTVue (Optovue) measures the GCC by scanning 1 horizontal line and 15 vertical lines at 0.5 mm intervals, covering a 7 mm2 region, centered on the fovea. The machine acquires 14928 A-scans within 0.6 seconds. The results are then processed to provide thickness maps of the GCC, pattern-based parameters of Focal Loss Volume (FLV) and Global Loss Volume (GLV).
The GLV is found to correspond to the total deviation map and the FLV to the pattern deviation map seen on visual fields. A deviation map is calculated by comparing the thickness map to the normative databases. The machine also provides a "significance map" which illustrates the areas which have a statistically significant change from normal.
The GLV is found to correspond to the total deviation map and the FLV to the pattern deviation map seen on visual fields. A deviation map is calculated by comparing the thickness map to the normative databases. The machine also provides a "significance map" which illustrates the areas which have a statistically significant change from normal.
The Spectralis (Heidelberg) measures the entire
retinal thickness rather than the RGC layer. The machine scans the central 200
area, using 61 lines (300x250 OCT volume scan) to measure
the retina thickness. A color-code thickness map is produced using a 8x8 grid
centered on the fovea. The grid is symmetrical to the fovea-to-disc axis of
each eye. It also displays the asymmetry between the superior and inferior
hemisphere of each eye (hemisphere asymmetry). The machine also provides a mean
thickness map.

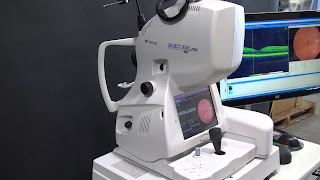

3D
OCT 2000 (Topcon) measures the RNFL thickness, the RGC with the IPL (GCIP) and
GCC. It uses raster scanning of a 7 mm2 area centered on the fovea with a scan
density of 128 (horizontal) X 512 (vertical) scans. The boundaries of the
anatomical layers are determined by the program software using a validated,
automated segmentation algorithm.
The “macula inner retinal layers”
(MIRL) analysis software analyzes a 6 mm x 6 mm region centered at the fovea.
The software divides the macular square into a 6 x 6 grid containing 100 cells
of 0.6 mm x 0.6 mm, to assess regional abnormalities in MIRL thickness. Average
regional thickness of GCC, GCIP and RNFL in each cell is calculated and
compared to the normative database of the device.
Studies
have found that the average GCC thickness for diagnosing glaucoma stages did
not differ significantly among the 3 OCT machines.
In a study using the RTVue, the mean GCC was found to have significantly higher diagnostic power than the macular retinal thickness in discriminating between normal eyes and those with perimetric glaucoma.
In a study using the RTVue, the mean GCC was found to have significantly higher diagnostic power than the macular retinal thickness in discriminating between normal eyes and those with perimetric glaucoma.
A study of 3D OCT 2000 found that all GCC parameters decreased from normal to pre-perimetric glaucoma (PPG) and from PPG to early glaucoma. The values of GCIP and GCC parameters differed significantly among the 3 groups (p <0.001). However, the RNFL thickness of the macula between healthy eyes and those with PPG did not differ significantly (p <0.05).
According to Meshi, structural evaluation (OCT) might be a more sensitive measure of ocualr health in early stage glaucoma, whereas functional evaluation (perimetry) may be a more sensitive measure of glaucoma progression in moderate-to-advanced stages.
However, repeatability of the changes is important in evaluation of progression. Thinning of the macula can also be produced by aging, which needs to be excluded by other tests and clinical evaluation of the patient for glaucoma.
According to Meshi, structural evaluation (OCT) might be a more sensitive measure of ocualr health in early stage glaucoma, whereas functional evaluation (perimetry) may be a more sensitive measure of glaucoma progression in moderate-to-advanced stages.
However, repeatability of the changes is important in evaluation of progression. Thinning of the macula can also be produced by aging, which needs to be excluded by other tests and clinical evaluation of the patient for glaucoma.
Studies
have also found that patients showing only hemifield changes on VF (the other
hemifield being normal), showed changes in the GCC thickness even in the normal
hemifield. MIRL parameters are comparable to those of cpRNFL thickness in
diagnosing glaucoma early. This is especially useful when cpRNFL measurements
are not reliable, such as in eyes with small or large optic discs, in tilted
discs or peripapillary atrophy.
A
study by Iverson showed high specificity (91%) for GCC thickness parameters in
normal eyes but only moderate specificity (77%) in glaucoma suspects. However,
half of the GCC measurements classified as outside normal limits were not
replicable on subsequent scans.
There are some limitations of GCC analysis. The OCT machines only scan the macular region thus, information regarding areas nasal to the optic disc are not acquired. Abnormal thickening of the inner retina, such as macular edema and retinal fibrosis may lead to erroneous GCC measurements. The findings of individual machines are also not comparable to each other.
There are some limitations of GCC analysis. The OCT machines only scan the macular region thus, information regarding areas nasal to the optic disc are not acquired. Abnormal thickening of the inner retina, such as macular edema and retinal fibrosis may lead to erroneous GCC measurements. The findings of individual machines are also not comparable to each other.
OCT
technology is evolving to provide better evidence of structural damage in
glaucoma. It has been suggested that VF changes can be combined with GCC
changes to develop an algorithm in order to better investigate the
structural-functional aspects of glaucoma progression.
